Line 6 Helix Rack + Foot Controller | Second Hand

The Line 6 Helix Rack and Helix Control system represents the flagship ecosystem within the Line 6 hardware family, engineered to provide comprehensive guitar processing for professional touring environments and commercial recording studios. At the core of the system is the proprietary HX modeling engine, a dual-DSP platform designed to replicate the detailed dynamic behavior, tube sag, and complex harmonic components of traditional analog guitar rigs. By separating the primary processing engine from the tactical stage controls, this unified bundle offers guitarists and engineers maximum configuration flexibility across both live performance and tracking applications.

The physical hardware architecture is split into a robust 3RU standard 19-inch rack enclosure and a heavy-duty extruded aluminum floor unit. The Helix Rack front panel features a high-resolution, 6.2-inch 800x480-pixel color LCD display designed to streamline complex parameters without intensive menu navigation, supported by a 123dB dynamic range guitar input and a discrete XLR microphone preamplifier with 48V phantom power. The accompanying Helix Control floor unit bridges directly via a single EtherCON data cable, populating the stage layout with 12 capacitive touch-sensitive footswitches integrated with customizable LCD scribble strips and assignable RGB color indicator rings.

Advanced Dual-DSP Section

HX Modeling Architecture: Leverages dual-SHARC processing chips to concurrently manage up to four discrete stereo signal paths, supporting dense processing arrays with over 400 total amplifier, cabinet, microphone, and effects models.
Component-Level Component Emulation: Accurately calculates power supply ripple, individual vacuum tube bias behaviors, and internal component tolerances to capture the physical feel and transient bloom of classic tube heads.
Extensive Input/Output Center: Equipped with four assignable mono/stereo effects loops, allowing users to embed analog outboard gear, split wet/dry routing templates, or process up to four instruments simultaneously.
Studio-Grade USB Interface: Functions as an 8-in/8-out 24-bit/96kHz USB audio interface with built-in capability for direct DAW tracking, software re-amping, and comprehensive MIDI communication.

Professional Stage Interface

Capacitive Touch Footswitches: Allows musicians to instantly select an effect block for detailed editing simply by making contact with the metal shroud of the switch, bypassing manual entry.
Dynamic LCD Scribble Strips: Backlit visual displays located above each individual floor switch update in real-time to reflect active patch assignments, parameters, or custom macro labels.
Assignable RGB Color Rings: Multi-color LED rings illuminate the perimeter of each switch and can be color-coded to quickly identify effect categories on low-visibility stages.
Unified Cable Topology: Transmits all bidirectional control data and draws low-voltage bus power over a standard CAT-5 or EtherCON line, eliminating the need for local floor AC adapters.

Second Hand

All of our second hand items have been thoroughly checked and are in full working order. Please see photos for overall condition.

At Bonners Guitar Store, we offer high-quality used instruments, amps and effects pedals that undergo a meticulous inspection and refurbishment process. Our skilled technicians carefully check, clean, and thoroughly test each instrument to ensure it meets our stringent standards. We go the extra mile to set up every used guitar, ensuring it's ready to play as soon as you receive it. Our commitment to quality assurance guarantees that you can confidently explore our selection of used guitars, knowing that each has been expertly prepared for the best playing experience.

Line 6 Helix Family

Line 6 HX ONE Singular Effect Pedal | With 2 FREE Pedal Toppers

Line 6 HX Effects Multi Effects Pedal | With 8 FREE Pedal Toppers

Line 6 Helix HX Stomp XL Multi-Effects Pedal | With Free Headphones Offer

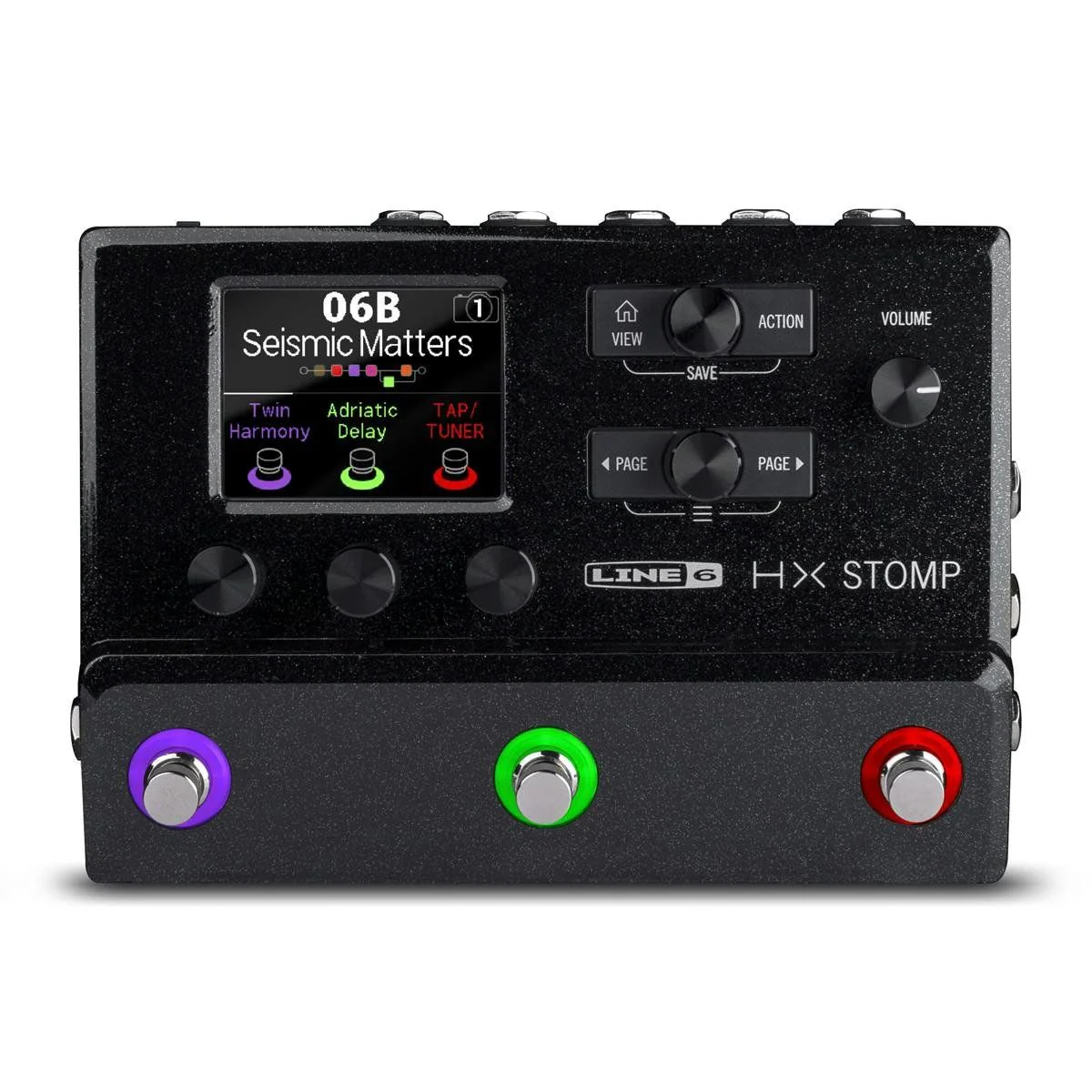

Line 6 Helix HX Stomp Multi-Effects Pedal | With Free Headphones Offer
